    • 100T Corn Mill Maize Mill with Dry Method
      Writer: Corn Mill From: Corn Mill
      Size: Big Medium Small Time: 2014-09-03 14:33:13

      Corn mill here refers to a corn milling plant, which adopts dry method and mainly consists of corn cleaning section, corn milling section and corn packaging section. The corn dry milling process is a less versatile, less capital intensive process. In the corn milling process, the corn milling machine depends on one pair of opposite differential rotation to peel materials, extract the endosperm and mill corn kernels into fine ground corn meal.
      Core equipments of corn milling plant: vibrating sieve, classifying destoner machine, air blower, air suction duct, degerminator, germ extraction machine, corn peeling machine, corn polishing machine, flat sieve.


      corn mill maize mill with dry method.jpg

      corn mill corn flour

      Corn mill plant features:
      Corn cleaning ensures high purity maize germ, grits and flour. New type maize cleaning machine and destoner ensure maize the best processing condition and the highest purity for further maize milling process.
      Dry milling process and high maize product yield. The completely dry method maize degermination, peeling, polishing and milling process ensures high yield of corn flour (75-80%), corn husks of 20-25%.
      Corn mill plant realizes easy operation and maintenance.
      Corn mill reduces equipment input in grain dampening and end products drying and makes the maize processing more sanitary.

      Corn mill working process:
      First, the plant needs to remove the impurities that adhere to the corn kernels surface, then polishes the corn kernels and makes them look more bright.
      Next, the plant cleans the corn by once screening, once stone removing and once magnetic separation section to remove the big, medium and small impurities and the magnetic material from the corn.
      Then, it goes into fine flour milling section, screening section and purification section.
      Finally, you can choose manual packaging or electronic packaging according to your actual demand.


      Corn mill technical parameter:

      rocessing Capacity
      Power
      KW
      Power Consumption for Tons of Material
       KW/HOUR
      Yield
      T/24 HOURS
      Workshop Size
      L×W×H/M
      20T
      72
      58-60
      20T
      20×5×5(line structure)
      16×5×6(steel structure)
      30T
      108
      58-60
      30T
      24×5×6(line structure)
      30×5×5(steel structure)
      50T
      172
      56-58
      50T
      35×5×7(steel structure)
      100T
      346
      56-58
      100T
      40×7×8(steel structure)

      1. End products: grade corn flour and corn bran.
      2. Products yield rate: grade corn flour 75-80%, corn bran 20-25%
      3.End products index:
      A. Corn flour fineness:40-200 meshes (the flour fineness can be adjusted)
      B. Sand content:<0.02%
      C. Magnetic metal content:< 0.003/kg
      D. Moisture storage:13.5-14.5%
      E. Fat content:0.5—1%
      F. Appearance and taste: bright and golden color, fine powder, high quality and pure taste.


      Each Processing Part of the Corn Mill Plant:



      Vibration Cleaning:
      Maize milling plant or corn flour milling plant


      Destoner Machine:
      Maize milling plant or corn flour milling plant destoner


      Dampening:
      Maize milling plant or corn flour milling plant dampening


      Corn Bran Removing:
      Maize milling plant or corn flour milling plant corn peeling


      Corn Degerminator:
      Maize milling plant or corn flour milling plant degerminator


      Corn Germ Extraction:

      Maize milling plant or corn flour milling plant corn germ extraction


      Corn Grits Making:
      Maize milling plant or corn flour milling plant grits making
      Maize milling plant or corn flour milling plant grits making


      Corn Flour Milling:
      Maize milling plant or corn flour milling plant corn flour milling


      Plansifter:
      Maize milling plant or corn flour milling plant plansifter


      End Products Packaging:

      Maize milling plant or corn flour milling plant corn packing



      PLC Control System:
      Maize milling plant or corn flour milling plant PLC



      Dedusting System:
      Maize milling plant or corn flour milling plant dedusting


      Surge Bin:
      Maize milling plant or corn flour milling plant surge bin


      Pneumatic Conveying:
      Maize milling plant or corn flour milling plant pneumatic conveying


      Material Conveying:
      Maize milling plant or corn flour milling plant material conveying


      Pipelines:
      Maize milling plant or corn flour milling plant pipelines





      VIDEO:

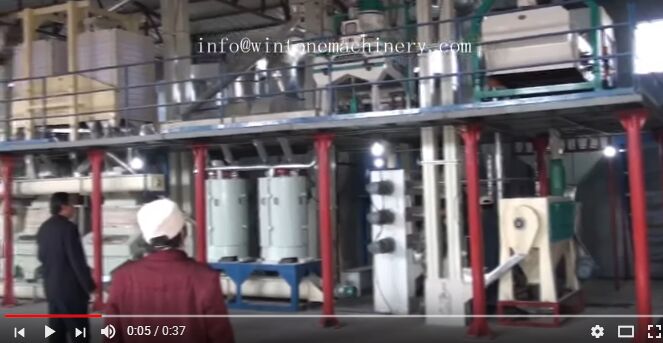

      Maize Grits, Flour and Germ Production Line built in Tengzhou, Shandong Province by Win Tone Machinery


      ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

      OUR FACTORY:

      PROCESSING WORKSHOP:

      CUSTOMER VISIT:

      FAIR:

      OUR TEAM:
