TSFZ-15T Compound Corn Grits and Corn Flour Machine

Win Tone TSFZ-15T multifunctional corn grits and corn flour whole set of equipment adopts multi-module and split type of streamlined design.

  TSFZ-15T Multifunctional Corn Grits and Corn Flour Machine Set Technology Introduction:

  Win Tone TSFZ-15T multifunctional corn grits and corn flour whole set of equipment adopts multi-module and split type of streamlined design. The machining process is controlled by complete automation and can realize continuous operation in 24 hours. It is suitable for various kinds of grains processing, such as corn processing, soybean processing, mung bean processing, wheat processing, millet processing and sorghum processing.

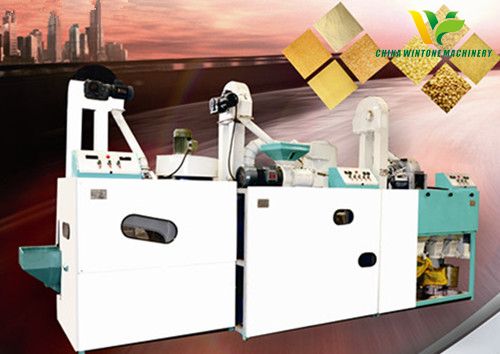

Corn Grits and Corn Flour Machine Set

multifunctional corn grits and corn flour machine set.jpg

  The equipment is easily operated and maintained. It contains cleaning and stone removing section, peeling and polishing section, grits and flour milling section, end products classifying section and winnowing section. It has the features of good sealing, no dust flying out, sanitation, easy operation and maintenance, high automation degree, attractive appearance, small floor area and so on. It is the new type of whole set of equipment which is suitable for farms and grain processing plants.

corn grits and corn flour machine set.jpg

  TSFZ-15T Multifunctional Corn Grits and Corn Flour Machine Set Technological Process:

  The unprocessed grains are put into the feeding hopper of the single mechanical elevator and is conveyed to TQS-50 cleaning and stone removing combination machine by TTG19/8D single mechanical elevator. Then it can remove the big and small impurities and stones with similar gravity with grains from the raw material. The net grains flow into the mechanical elevator hopper of NFZ-280G peeling and polishing combination machine. Then it is conveyed to NFZ-280G peeling and polishing combination machine by the combination elevator for peeling and polishing. After peeling and polishing, the grain kernels flow into the elevator hopper of YMSF-404 four-size corn grits machine. And then they are conveyed to YMSF-404 four-size corn grits machine by the conveyor for milling. After milling, the corn grits and flour is screened by the cylinder classifying screen and the big, medium and small grits and flour from the screen can be packaged. The exhaust fan aspirates the corn bran into the centrifugal spiral dust remover for corn bran collection.

multifunctional corn grits and corn flour machine set.jpg

  TSFZ-15T Multifunctional Corn Grits and Corn Flour Machine Set Features:

  1. Streamlined modular design adopts grain cleaning, two sections of peeling, one section of polishing. The whole process is completely automated.

  2. It adopts dry method peeling, and doesn’t need water in processing. Compared with wet method, it is more sanitary.

  3. The processing equipments in the whole set all have won the national patents and are popular in the USA, Italy and Russia.

  4. It adopts modular design and can process different grains according to requirements.

  5. The main parts adopt patented alloy material, which can ensure the production efficiency and long-term stable performance.

  6. It has small power, high efficiency, easy operation and maintenance.

  7. For the same processing capacity, it can save cost 50% at least compared with the domestic competitors and 80% at least compared with the international competitors.

  8. It has complete automation working process. The whole processing set just needs one worker for electronic control and one worker for packaging. This can save lots of labor charge.

multifunctional corn grits and corn flour machine set.jpg

  TSFZ-15T Multifunctional Corn Grits and Corn Flour Machine Set Technical Parameter:



Single Machine Main Technical Index

Corollary Equipment Name and Model

Power(kw)

Yield(t/h)

Single

Total

Single

Total

TG19/8D Single Elevator

0.37*3

33.26

1-1.5



TQS-50 Cleaning and Destoner Machine Set

3

1.2-1.5



NFZ-280G Peeling and Polishing Machine Set

5.5*3

0.6-0.8

0.6-0.8

YMSF-404 Four-size Grits Machine

7.5

0.6-0.8



Exhaust Fan

2.2+2.2+0.75





Combination Machine Main Technical Index

No.

Item

Technical Parameter

Remarks

1

Yield(t/24h)

15



2

Power Input(v/HZ)

380/50



3

Total Power(kw)

33.26



4

Total Weight(t)

3--4



5

Size(l*w*h)(m)

5.2*1.4*2.8



6

workshop noises and dust concentration reaches the national standard

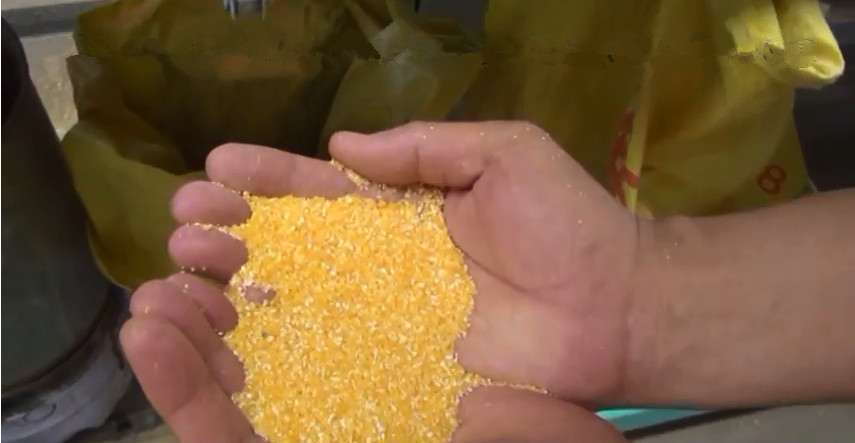

End Products

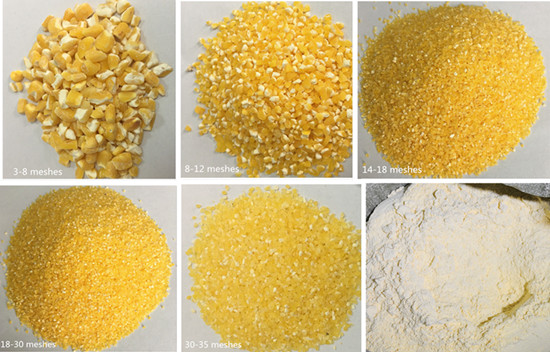

corn kernel, corn coarse grits, corn fine grits, corn coarse flour, bran for feeds                                                           ;

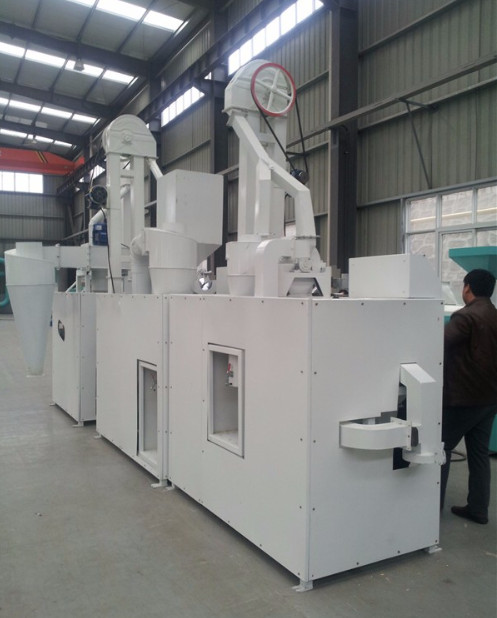

Corn Grits and Corn Flour Machine Set

Corn Grits and Corn Flour Machine Set



OUR FACTORY:

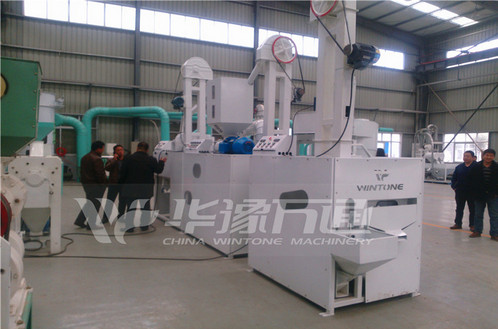

PROCESSING WORKSHOP:

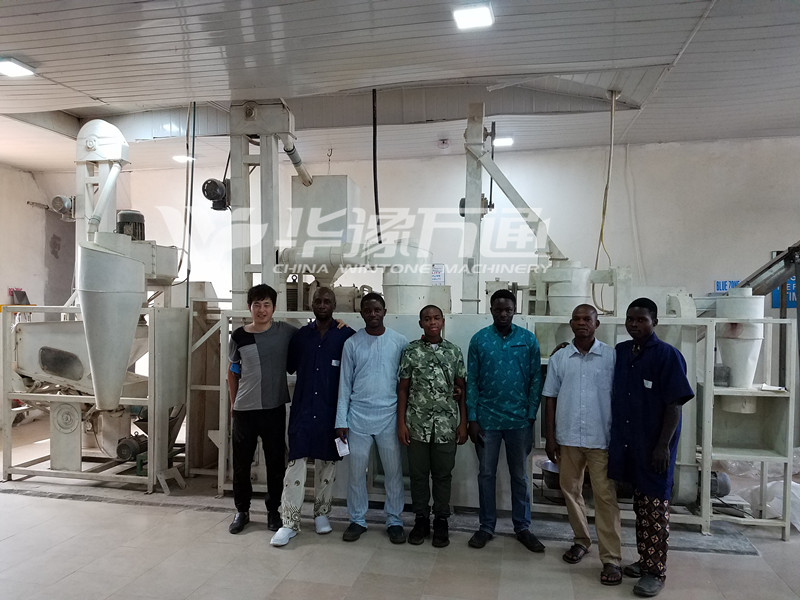

CUSTOMER VISIT:
