Maize Germ Extraction Machine

Maize degerminator utilizes the hitting and cutting between the rotor and the toothed plate, and the friction and crash between corn kernels to realize corn peeling, corn degermination and corn grits making.

Maize germ extraction machine is used in semi-dry and dry method of corn processing project. As the equipment for corn germs and corn endosperm separating, it can improve corn products quality and corn auxiliary products value.
It is the core equipment for corn germs extraction in alcohol plants, starch plants, starch sugar plants and feed plants.


TTPD series of rubbing type maize germ extraction machine
is the core equipment of corn germs extraction project. It includes two models: TTPD50X72 and TTPD75x100, which can process 3 tons of corn and 6 tons of corn separately.

Maize germ extraction machine working principle:
Maize degerminator utilizes the hitting and cutting between the rotor and the toothed plate, and the friction and crash between corn kernels, damages the corn endosperm structure, the structural strength of corn germs and the bonding strength between corn endosperm and corn germs so as to realize corn peeling, corn degermination and corn grits making.


Corn flows from the glass cylinder and enters into the space between rotor and toothed plate group. Motor drives the rotor spindle to rotate. Corns are rubbed and struck to be hulled between rubbing plate and toothed plate and go out through discharge hopper of corn rubbing degerminator. By adjusting the interval between the rubbing plate and the toothed plate, it can degerm the corn with different moisture and density and has high degermination rate.


Maize degerminator features:
Maize degerminator adopts dry method degermination with low fat content and reduces energy consumption and equipment cost.
Maize degerminator doesn’t need grain moisturing or water in dry method degermination. Compared with wet method, it is much more sanitary.
Maize degerminator doesn’t need steam for tempering in advance so as to save lots of cost.


Corn germ extraction machine technical parameter:

Model
Yield
(T/H)
Power
(KW)
Spindle Speed
(r/Min)
Washboard Line Speed
(M/S)
Weight
(KG)
Size
(MM)
TTPD50X72
2~3
7.5
860
18-19
750
1150x890x1450
TTPD75x100
4~6
15-22
735-485
18-19
1500
1450x1140x2030

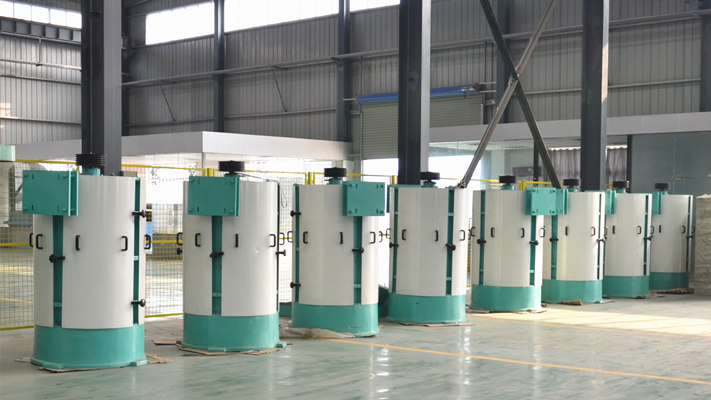

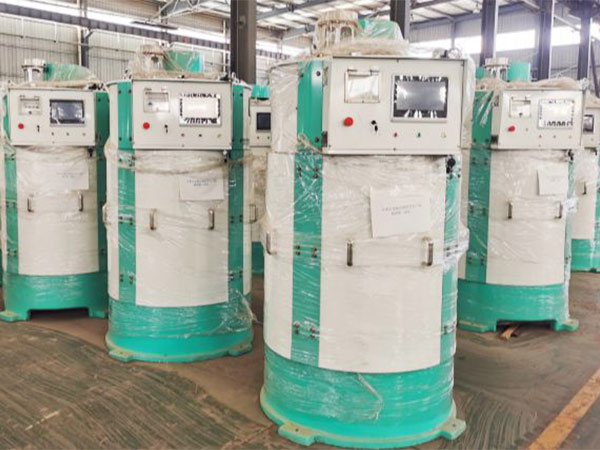

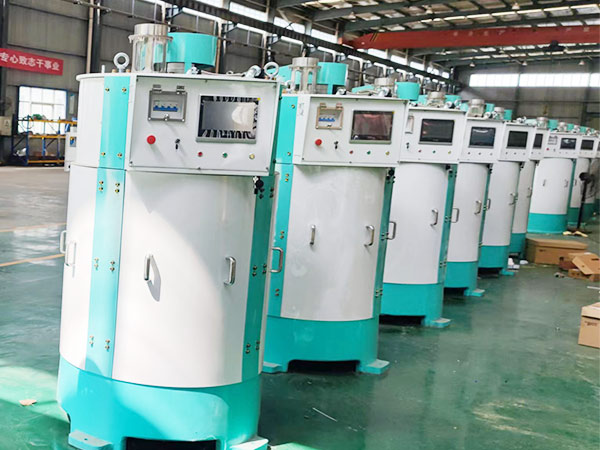

OUR FACTORY:

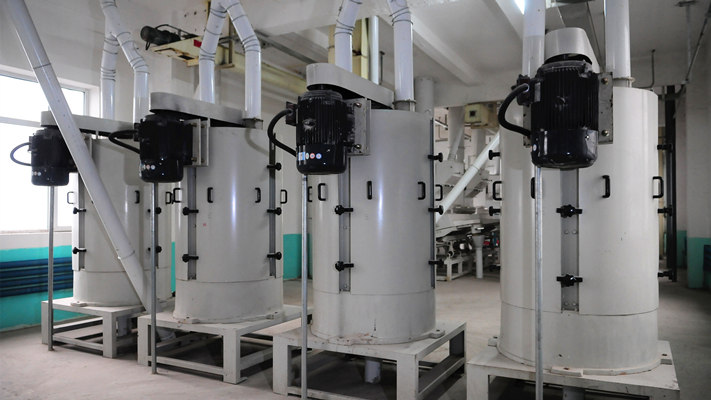

PROCESSING WORKSHOP:
