FSFC-2×12×100 Twin-case Plansifter

Machine

FSFC-2×12×100 Twin-case Plansifter

FSFC-2×12×100 twin-case plansifter is used in secondary screening after powder screening by plansifter and before packaging.

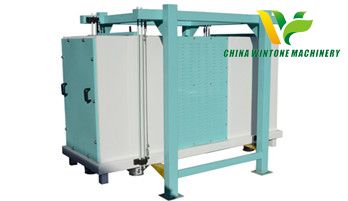

twin-case plansifter.jpg



Twin-case plansifter usage:
FSFC-2×12×100 twin-case plansifter is used in secondary screening after powder screening by plansifter and before packaging. It is also used to classify powdery material, coarse wheat flour and middle grinding material.

Twin-case plansifter main structure:
1、sieve body 2、conveying device 3、sieve pressing device 4、sieve rack, suspender

Plansifter principles and features:
It adopts self-balancing rotary device without vertical shaft. The motor which is installed at the middle part of the sieve body below, drives triangular belt pulley to make the weight block rotate, resulting in plane rotation of the sieve body.
It has compact structure, high processing capacity. Building block design can meet customers’ need very well. NOVA screen supplies excellent screening efficiency.

Plansifter technical parameter:


Model
Yield(KG/H)
Power
KW
Rated Voltage
(V)
Spindle Speed(R/MIN)
Weight
(KG)
Screen Rotation Diameter
(MM)

FSFC-2×12×100
2-12
1.1-2.2
380
260
550-1600
Φ50-55


  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
